A major refit for a family’s beloved 64’ Vantaire

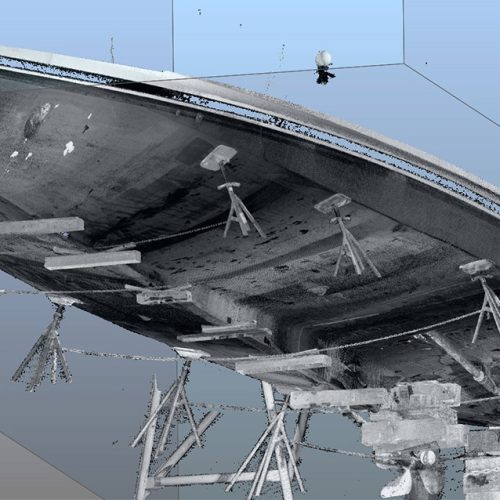

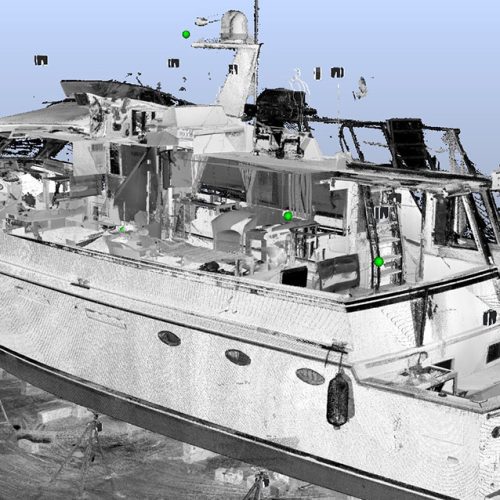

The refit was generally intended to modernise the vessel and make it more comfortable. The main areas of concentration were to re-configure the aft-deck, update the galley and master state room, upgrade electronics and generators and to add an upper pilot house. A design was needed for the changes to the vessel. Since no current drawings existed, a new technique utilising a laser scan of the vessel was completed. This laser scan produced 3D CAD drawings of the vessel with an accuracy of ± 2mm. The scan data is so accurate that the design and computerised lofting was completed without any onsite measurements being taken.
Knot Accountable
Knot Accountable
Knot Accountable
Knot Accountable

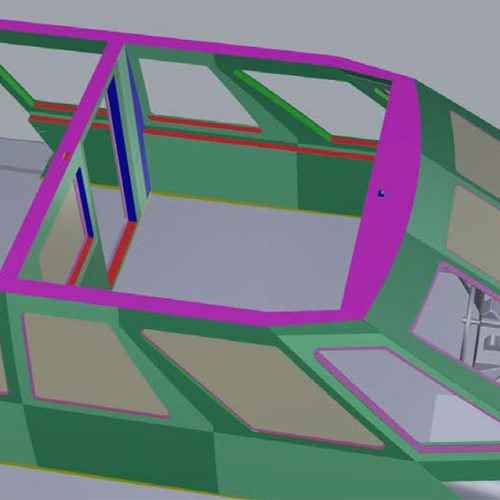

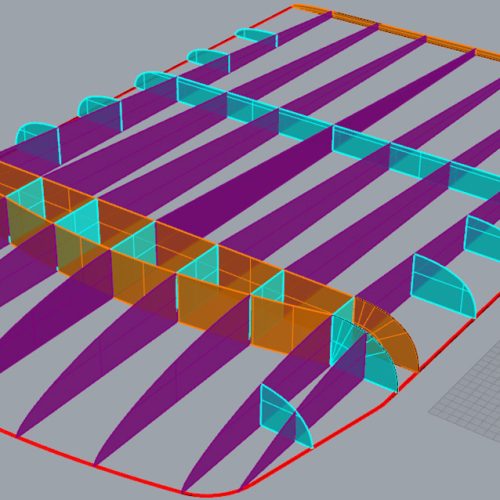

The fibreglass cutting plan - this shows the wall modules with no roof.

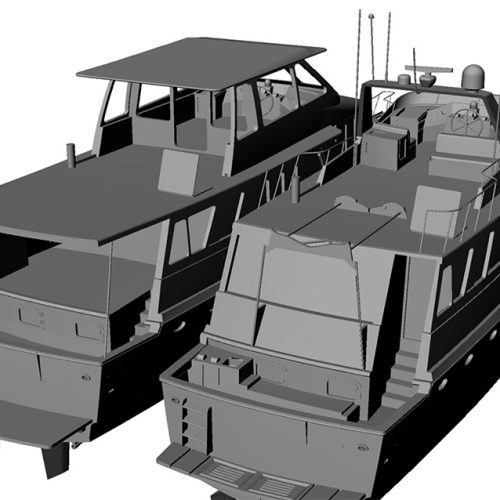

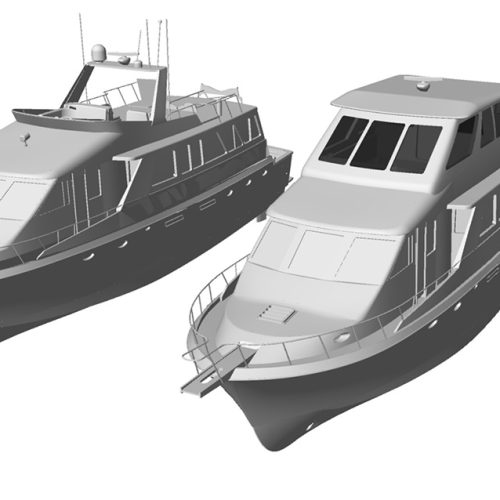

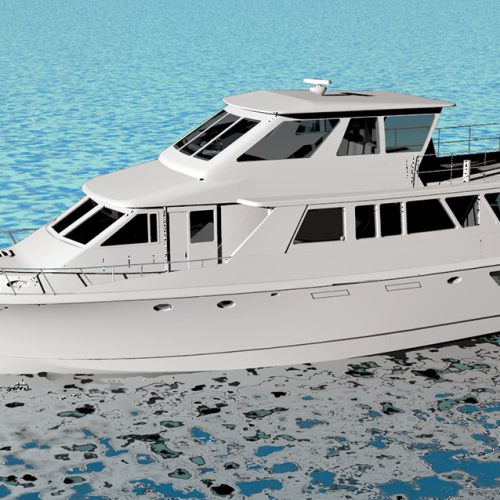

Comparison of the existing design and the planned retrofit
Comparison of the existing design and the planned retrofit
